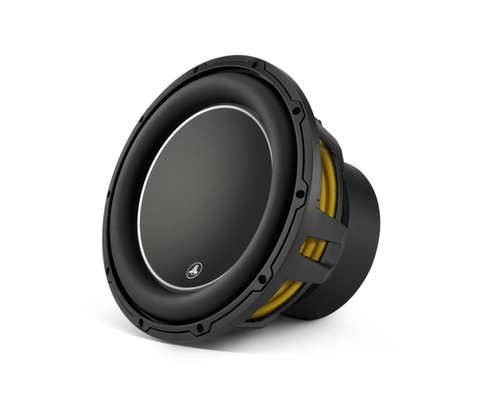

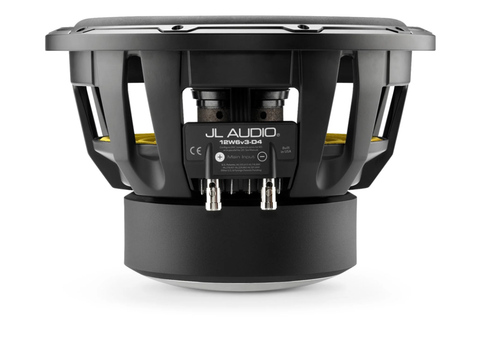

JL Audio 12W6v3-D4 12" Sub-Woofer

W6v3 12-inch Subwoofer Driver (600 W, Dual 4 Ω)

If you are seeking intensely powerful sub-bass that compromises nothing in terms of sound quality, the 12W6v3 is the ultimate choice.

Description:

• This highly advanced Subwoofer offers several technologies shared with the flagship W7AE subwoofers to provide powerful advantages in motor linearity and suspension behavior. These combine with a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance.
• The 12W6v3 is best used with amplifier power in the 200W - 600W range and is optimized to operate in a sealed enclosure with only 1.0 cu. ft. (28.3 l) of air space, or a 1.3 cu. ft (36.8 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

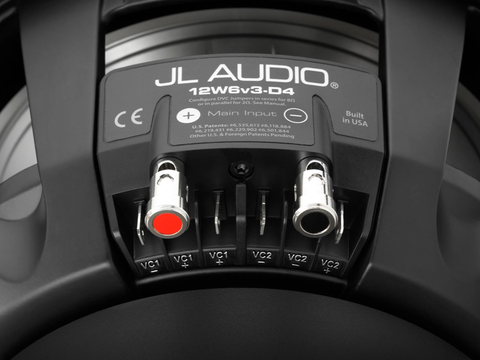

• Greater excursion capability and higher power handling distinguish it from our 12W3v3 12-inch Subwoofer, allowing for higher output. Dual 4 Ω voice coils permit deploying the W6v3 as a 2 Ω or 8 Ω driver.

Specifications:

• Continuous Power Handling (RMS): 600 W
• Recommended Amplifier Power (RMS): 200 - 600 W
• Nominal Impedance (Znom): Dual 4 Ohm

Physical Specifications:

• Nominal Diameter: 12.0 in / 300 mm
• Overall Diameter (A): 12.5 in / 218 mm
• Mounting Hole Diameter (B): 11.02 in / 280 mm
• Bolt Hole Circle Diameter (C): 11.86 in / 301 mm
• Motor Oute Diamter (D): 7.0 in / 178 mm
• Mounting Depth (E): 7.52 in / 191 mm
• Required Pole Vent Clearance: 0.50 in / 13 mm
• Driver Displacement: 0.105 cu ft / 2.97 L
• Net Weight: 25.6 lb / 11.6 kb

Parameters:

• Free Air Resonance (Fs): 26.919 Hz
• Electrical "Q" (Qes): 0.487
  Mechanical "Q" (Qms): 9.365
• Total Speaker "Q" (Qts) 0.463
• Equivalent Compliance (Vas): 1.920 cy ft / 54.37 L
• One-Way Linear Excursion (Xmax)*: 0.75 / 19 mm
• Reference Efficiency (no): 0.11%
• Efficiency (1 W / 1 m)**: 85.4 cB SPL
• Effective Piston Area (Sd): 75.338 sq in / 0.0486 sq m
• DC Resistance (Re)***: 6.493 Ohm

*Xmax specifcations are derived via one-way voice coil overhang with no correction factors applied.

**For parallel-wired voice coilss, divide "Re" bby 4. All other specifications remain the same.

*** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide "Re" by 4. All other other specifications remain the same.

Sealed Enclosure Specifications:

• Wall Thickness: 0.75 in / 19 mm
• Front Baffle Thickness: 0.75 / 19 mm
• Volume (net int.): 1.0 cu ft / 28.3 L
• External Width (W): 15 in / 381 mm
• External Height (H): 15 in / 381 mm
• External Depth (D): 12 in / 305 mm
• F3: 41.62 Hz
• Fc: 45.99 Hz
• Qtc: 0.7912

Enclosure Notes:

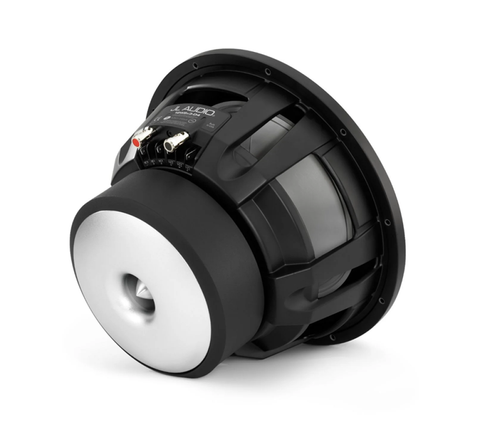

• The W6v3's employ a pole vent to remove heat and pressure from the inside of the speaker. This vent in located around the JL Audio badge at the rear of the speaker. A minimum distance of 0.5 in (13 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.
• The enclosure recommendations listed are external dimensions which assume the use of 0.75 in (19mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as many compromise the rigidity of the enclosure.
• All enclosure volumes listed are net internal volumes. Box volume displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions listed have already taken this into account.
• When using two subwoofers in a common enclosure simply double the required volume and, in the case of a ported enclosure, use two times the recommended port(s).
• We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and amplifiers. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect perfomance.

Ported Enclosure Specifications:

• Wall thickness: 0.75 in / 19 mm
• Front Baffle Thickness: 0.75 in / 19mm
• Volume (net int.): 1.3 cu ft / 36.8 L
• External Width (W): 27 in / 686 mm
• External Height (H): 14 in / 356 mm
• External Depth (D): 12.5 in / 318 mm
• Interanl Slot Port Width (SW): 1.75 in / 44 mm
• Internal Slot Port Height: (SH): 12.5 in / 318 mm
• Internal Slot Port Length (SL): 37.125 in / 943 mm
• Port Extension Length (EL): 21.250 in / 540 mm
• Tuning Frequency (Fb): 33 Hz
• F3: 31 Hz

Enclosure Notes:

• * The W6v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. A minimum distance of 0.5 in (13 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.
• * The enclosure recommendations listed are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
• * All enclosure volumes listed are net internal volumes! Box volume displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions listed have already taken this into account.
• * When using two subwoofers in a common enclosure simply double the required volume and, in the case of a ported enclosure, use two times the recommended port(s).
• * We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and amplifiers. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.

Safety Notice:

• Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.
• When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
