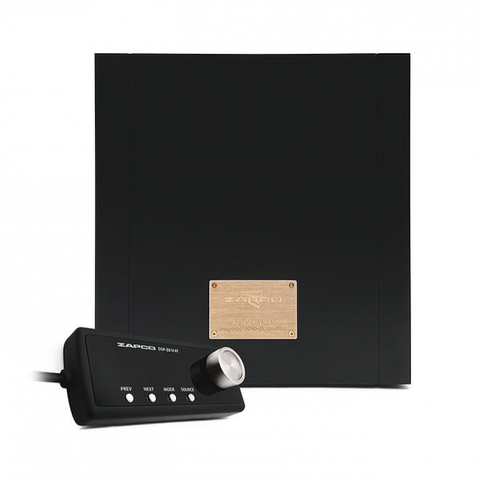

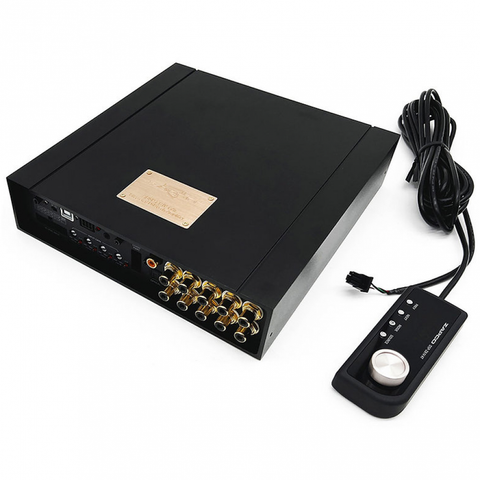

ZAPCO ADSP-Z8 IV-6AT 6-CHANNEL CLASS-A/B AMPLIFIER WITH 8-CHANNEL DSP
ZAPCO ADSP-Z8 IV-6AT 6-CHANNEL CLASS-A/B AMPLIFIER WITH 8-CHANNEL DSP
You can only be as good as your source material, and the new ADSP-Z8 IV-6AT greatly expands your potential for the best possible source material.

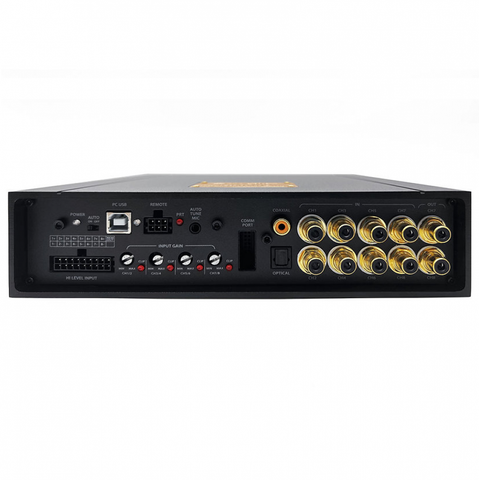

The new coaxial and optical inputs accept the digital signal from your head unit or from a portable HD player. The ADSP-Z8 IV-6AT also has a port for HD Bluetooth streaming (with the optional HD-BT module). An interactive digital port will expand your options even more. The port accepts the control input from the included Dash Remote so you can change input source, select your song, control the master volume and even control the output of your system’s bass amps. The new ADSP-Z8 IV-6AT amplifier has 6 amplified channels, About the GUI, the added Advanced menu also has a Mixing Set and an AutoTune function when you add the optional tuning microphone.
New features, new control... even improved sound quality.
The new Zapco Series IV GUI gives you all the great sound and functionality of the Series IV II and it adds Coaxial digital input as well as Optical digital and Bluetooth streaming. Drop-down menus also let you name each output channel to match your system setup. The added Advanced menu also has a Mixing Set and an AutoTune function, when you add the optional calibrated tuning microphone.
The new ADSP-Z8 IV-6AT gives you the more options for input selection. You can have up to 8 channels of input that you can set them up instantly simply choosing 2-Ch, 4-Ch, 6-Ch, or 8-Ch on the front page inputs section. If you need to sum channels of a factory stereo to get a full range input just click SUM and the system does it all for you. But, if your system is more complicated than standard, you also have the option to enter the Advanced menu and use the Mixing Set to manually give each channel exactly the amount of input from each input channel that will work best for your particular audio setup.
From simple to advanced, the Zapco Series IV GUI has you covered.
Auto Calibration
The ADSP-Z8 IV-6AT processors give you automatic Calibration for Equalization, Phase, and Signal Delay, when you add the optional calibrated tuning microphone. You can choose which function of functions you wish to have the system calibrate and you can choose which channels you wish to include in the calibration. In the Graph area you can see what the system is doing by looking at the Speaker curves and/or the Equalization curves, and you can turn the target curve on or off. Calibrating all channels for all functions can typically 5 to 10 minutes to do automatically what you might spend several hours doing.
Of course it is the human ear that will always be the final judge, but the auto tuning puts you at the point where you can do just the final tweaks and sit back and enjoy the music.
FEATURES:
- The new ADSP-Z8 IV-6AT amplifier now has 2x RCA outputs to feed the mono amp.
- The new GUI gives you all the great sound and functionality of the Series IV II and adds Coaxial digital input as well as Optical digital and Bluetooth streaming.
SPECIFICATIONS:
- DSP Processor: Cirrus Logic CS47048
- Power: 150 MHz/32 bit/192 KHz
- 8-Channels
- ADC: Cirrus Logic CS47048 32 bit/192 KHz
- ADC Dynamic Range/THD: 108 dB/-98 dB
- DAC: Cirrus Logic CS8422 24 bit/192 KHz
- DAC Dynamic Range/THD: 140 dB/-120 dB
- Low level (Pre)/Sensitivity: 1-5 VRMS
- High Level (Spk In)/Sens.: 2-20 V
- Optical Digital IN: 24 bit-192 KHz
- Coaxial Digital IN: 24 bit-192 KHz
- Freq. Response (-3dB): 10 Hz - 22.5 KHz
- S/N Ratio only DSP Digital Input: 110 dBA
- S/N Ratio only DSP Analog Input: 106 dBA
- S/N Ratio Amp + DSP at max. power: 95 dBA
- THD+N only DSP Digital Input: 0,002 %
- THD+N only DSP Analog Input: 0,005 %
- THD+N Amplif. + DSP Analog Input: 0,07 %
- Crosstalk at 1 Khz only DSP: 90 dB
- Crosstalk Amplifier + DSP: 45 dB

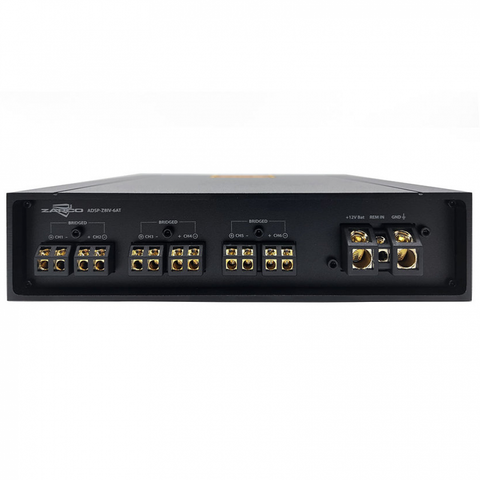

- Amp Power @ 4Ω: 6 x 80 watts
- Amp Power @ 2Ω: 6 x 120 watts
- Amp Power @ 4Ω Bridged: 3 x 240 watts
- F/R EQ: 1-6 ch Gr. & Par./31 poles
- Effect EQ: 7-8 ch Gr. & Par./11 poles
- Mute/Solo: Yes, each channel
- Time Align. (Range/Steps): 0/15 ms / 0.02 ms
- Max Delay (Cm/Steps): 515 cm / 0.68 cm
- Polarity: 0/180°
- Remote Control included
- HD-BT Streaming (with optical HD-BT
- PC/Display Connection: USB/6-pin Mini DIN
- Unit Dimensions: 213(W) x 222(L) x 50(H)
