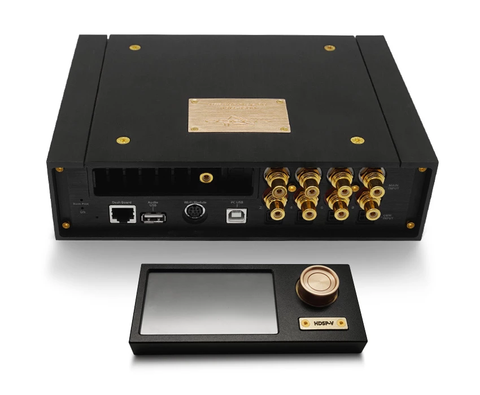

Zapco HDSP-Z16 V AD-16A 16CH DSP with HD Player

The HDSP-Z16 V is the best hardware that Zapco has ever built, and the numbers attest to that. Although the HDSP is composed of 18 individual pieces put together in a modular version that is easy to adapt or update according to your needs, the background noise and the crosstalk numbers are superb.

The end result surpassed even the expectations of the designers and engineers who built it.

It took almost three years, but eventually came this unique piece of hardware that we believe will remain in the history of Zapco and set new standards for what is possible in audio reproduction.

The built-in HD Player has a dedicated browser that starts to work immediately when you insert the USB memory stick.

It can read all formats up to 24 bit/192 KHz, compressed or not compressed, and from the 3” touch screen display, you can control all the functions using 3 different levels of folders.

The dash board that controls the Player also controls minor DSP functions and can manage up to 10 tuning presets with instantaneous switching of one to another for A/B comparison.

FOR A COMPLETE EXTENDED RUN DOWN ON THE FEATURES & SPECS OF THIS AMAZING UNIT, PLEASE VISIT https://www.zapco.com/hdsp-5-series



Specifications:

• 16 Channels DSP with HD Player

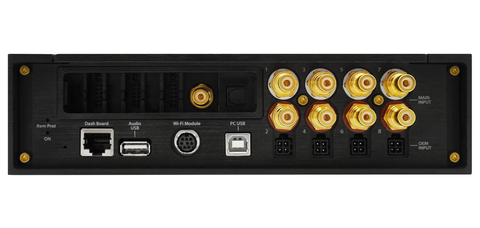

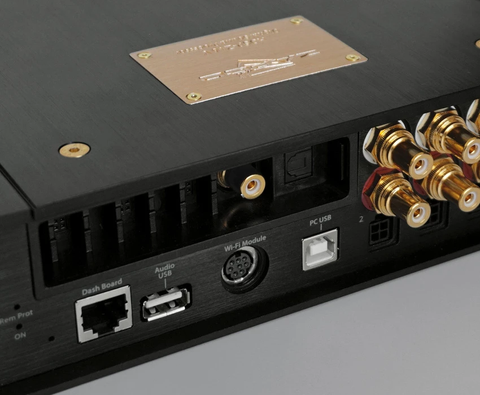

• 8 Analog Inputs (RCA + High Level), 5 Digital Inputs, 16 Analog Outputs

• Modular device: High-end solution with 18 independent PCB

• Player & DSP: All-in-one dual core processor

• DSP Processor: OMAP L-138 - 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision)

• DSP Processor Point: Fixed & Floating

• DSP Sampling Rate: 96 KHz

• Player power: 456 Mhz - Arm 9 32 Bit. Read till 192 KHz/24 bit

• File Audio formats: WAV, AIF, AIFF, FLAC, ALAC, AAC, MP3, Direct.: File or Artist/Album or Title

• USB memory stick support: Formatted FAT32 with limited memory space (2 TB)

• ADC Processor (standard): AK5558, 32 Bit, 784 KHz, 115 dB DNR

• ADC Processor (option B): AK5578, 32 Bit, 784 KHz, 121 dB DNR

• DAC Processor (standard): AK4458, 32 Bit, 784 KHz, 115 dB DNR (*8ch)

• DAC Processor (option B): AK4490, 32 Bit 784 KHz, 120 dB DNR (*8ch, Now Available)

• DAC Processor (option A): ES9038PRO, 32 Bit, 784 KHz, 132 dB DNR (*8ch, Not Available)

• Frequency response: 5Hz @ 45 KHz

• THD+N: 0,0008 (Digital Input), 0,001 (Analog Input) 1V Out

• S/N Device Floor Noise: -125 dB (from 20 Hz to 20 KHz), -135 dB (from 150 Hz to 20 KHz), -140 dB (average from 80 Hz to 20 KHz)

• S/N Ratio (Digital Inputs): from 115 to 120 dB A

• S/N Ratio (Analog Inputs): from 109 to 115 dB A

• Crosstalk: > 110 dB (from 300 Hz to 0.9 KHz)

• Crosstalk: average 115 dB (from 300 Hz to 0.9 KHz)

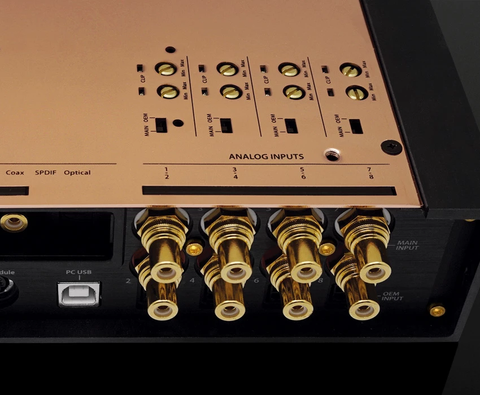

• Analog Inputs: 6/8 x RCA Low Level 1/5 Volt, 8 x High Level 4/20 Volt

• Digital Inputs: Optical: 24 Bit - 192 KHz, SPDIF: 24 Bit - 192 KHz, 3 x i2S: 24 Bit - 192 KHz

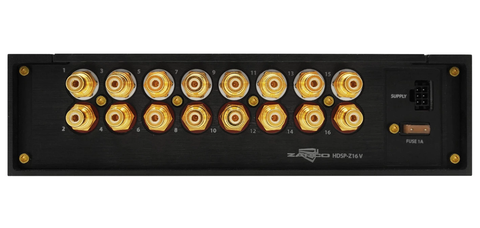

• Analog Outputs: 16 x RCA, 4 Volt (5 KOhm),  Impedance: 100 Ohm

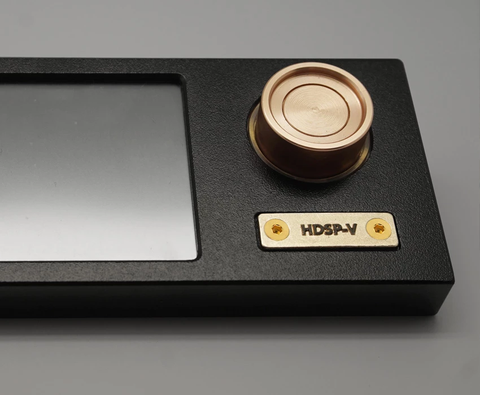

• Dash Board: 3" Touch Screen, 10 Preset

• Dash Board Control: Volume/Balance/Fader/Tone

• Wireless Control: Wi-Fi External Module (incl.)

• BT Streaming: External APTX HD Module (opt.)

• Tuning: Easy and Expert, "Double Front"

• I/O Setup: 2ch, 4ch, 6ch, 8ch, OEM SUM, AUX

• Digital Input Mode: HD, Optical, Coax, i2S 1, 2, 3

• EQ Parametric 30 / 6 poles

• XO Filters: Linkwitz, Butterw., Bessel, Tsecheb.

• Phase Filter: All channels 1Hz/1 Degree step

• VSEQ Filter: 50-200 Hz - 1 Hz step

• Power Supply: Operating: 6-16 Volt, Current Draw: 750 mA/14.4 V, Fuse: 1A

• Stop-Start ignition system support

• Main unit overall dimensions (mm): 217(L) x 164(W) x 57(H)

• Dash Board dim. (mm): 111(L) x 16(W) x 49(H)
