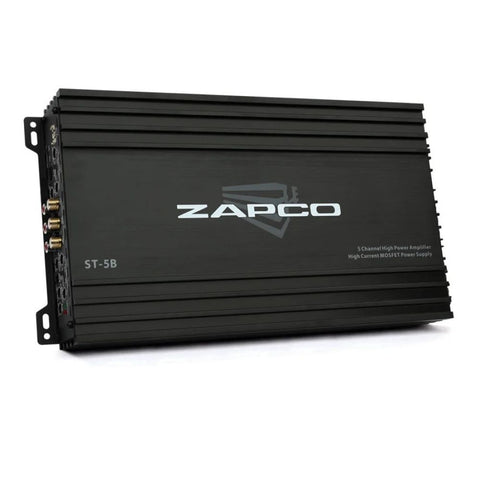

ZAPCO ST-5B CLASS-AB 5CH AMPLIFIER

Features:

• 5-Channel, Class-AB Full Range Amplifier
• Stable into 4 ohms bridged or 2 ohms stereo load
• MOSFET power supply
• RCA and OEM speaker level input
• Variable Inputs Gain Control
• Variable FULL / LP / HP Electronic Crossover
• Variable Bass Boost

Specifications:

• Power @ 4Ω: 4 x 70 + 1 x 250 watts
• Power @ 2Ω: 4 x 100 + 1 x 400 watts
• Power @ 4Ω Bridged: 2 x 180 + 1 x 400 (2Ω)
• THD @ Rated Power  < 0.2%
• Signal to Noise Ratio > 90dB
• Channel separation > 45dB
• Frequency Response 10Hz to 30,000Hz ±1dB
• Input Sensitivity .25v to 5v
• Dimensions in mm: 182(W) x 52(H) x 351(L)
• Overall: 182(W) x 52(H) x 381(L)
