ESB AUDIO 8.6K2 8000 SERIES 6.5" COMPONENT SPEAKERS
ESB AUDIO 8.6K2 8000 SERIES 6.5" COMPONENT SPEAKERS
Elevated to perfection
The 8000 series can be considered the direct heir of the 7000 series. The goal was to renew a variety of speakers in itself exceptional, with the help of the latest technologies and the use of the best materials available today; always with an eye to the versatility of installation.
The key to the development of this type of system in the car was so taken full advantage of their exceptional musicality. In the 8000 series, every detail was taken care of with the utmost care, from the choice of materials to the forms, from the construction and finishing of the baskets to the ventilation systems of magnets and coils.
It has improved what was thought to be difficult to improve and we strongly believe that it has laid the foundation for another decade of success.
TWEETER FEATURES:

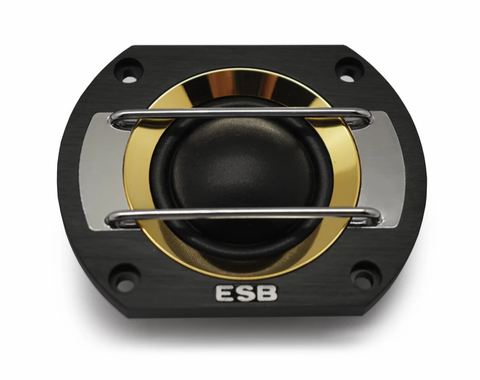

- 8028S 1.1"/28 mm Dome Tweeter
- 28 mm aluminium voice coil
- 32.8 mm nominal diameter
- High-grade neodymium magnet
- Torcon® soft dome
- CNC Avional faceplate
- Ferrofluid cooling and damping
- Acoustic resistance Qts control
- Computer optimized design
- Motor metal parts CNC machined
- Under-dome dB Cloth® damping material
MID-WOOFER FEATURES:

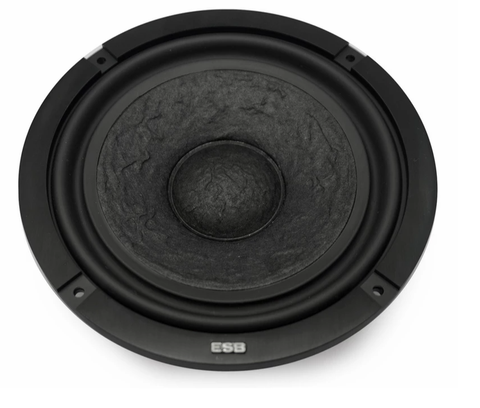

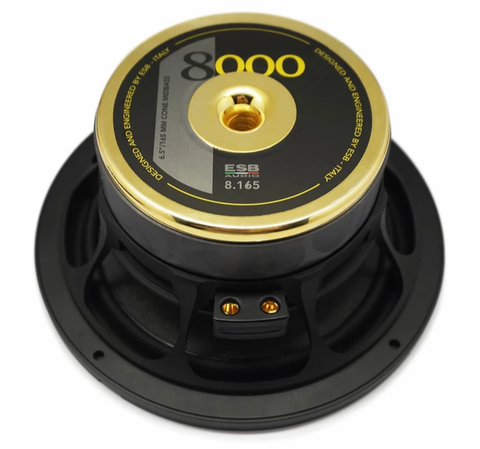

- 6.5"/165 mm Mid-Woofer

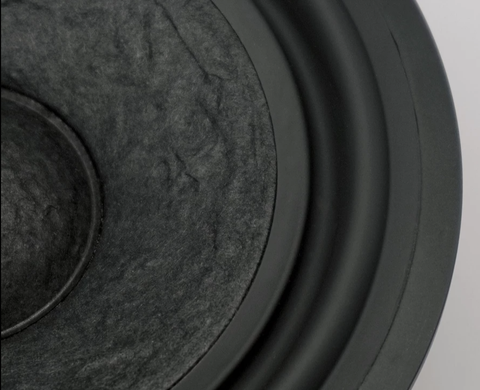

- Non-pressed paper cone
- 32.4 mm voice coil diameter
- Copper voice coil and aluminium former
- Large Y35 ferrite magnet
- NPPVTM exponential cone
- CNC aluminium basket
- TWS Rubber surround
- ConexTM progressive spider
- Computer optimized design
- Motor metal parts CNC machined
TWEETER SPECS:
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 110 Watt
- Transient Power: 220 Watt
- Frequency Response: 940 Hz ~ 25 KHz
- Sensitivity: 91 dB 1W/1m
MID-WOOFER SPECS:
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 160 Watt
- Transient Power: 320 Watt
- Frequency Response: 45 Hz ~ 4 KHz
- Sensitivity: 89 dB 1W/1m
